Networking Technology in AI Data Centers
The choice of networking fabric is a critical differentiator for AI data centers, impacting performance, scalability, and cost.
Networking Technology Comparison
| Technology | Key Characteristics | Primary Use Case (AI DC) | Pros | Cons |
|---|---|---|---|---|
| Standard Ethernet (≤100G) | Ubiquitous, best-effort delivery, mature ecosystem, lower speeds | Frontend network, management, traditional workloads | Cost-effective, widely understood, interoperable | High latency, not lossless (unsuitable for RDMA/AI collectives without significant modification) |
| InfiniBand (IB) | High bandwidth (400G/800G+), low latency, lossless fabric, native RDMA support | AI training backend fabric (Scale-Out) | Proven performance for HPC/AI, efficient RDMA, mature ecosystem for HPC | Potential scaling limits, higher cost, vendor concentration (NVIDIA/Mellanox), separate network |
| Ethernet with RoCE (e.g., Spectrum-X) | High bandwidth (400G/800G+), RDMA over Ethernet, requires lossless configuration (PFC/ECN) | AI training/inference backend fabric (Scale-Out) | Leverages Ethernet ecosystem, potential cost savings, supplier diversity, better integration potential | Requires careful configuration for losslessness, performance potentially sensitive to network tuning |
| Scale-Up Fabric (NVLink/ICI/NeuronLink) | Extremely high bandwidth (TB/s aggregate), ultra-low latency, proprietary, short reach | Intra-server/intra-node accelerator interconnect (Scale-Up) | Enables fine-grained parallelism (e.g., tensor parallelism), maximizes accelerator utilization | Proprietary, limited distance, adds complexity/cost |
Visualizing AI Data Center Networking

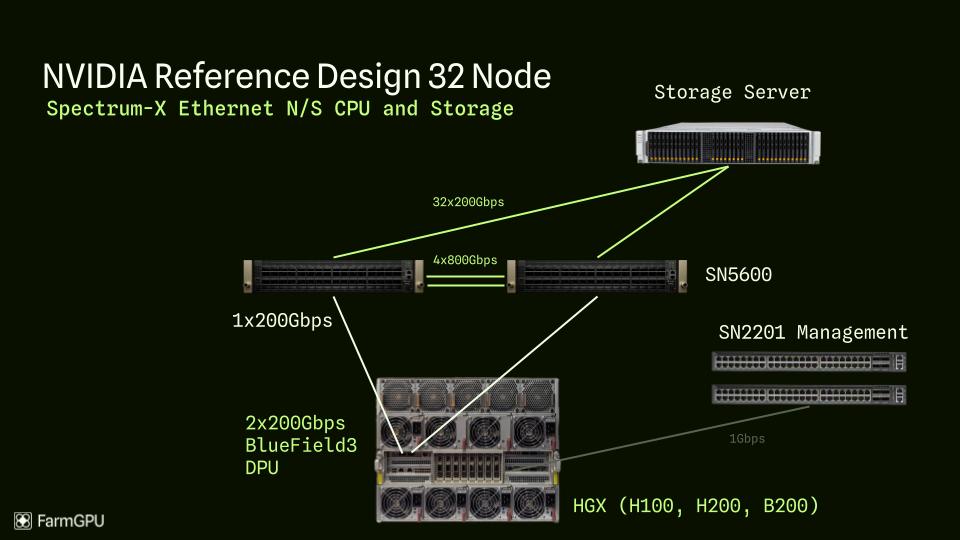

Figure: North/South (NS) network traffic in a data center, typically representing traffic between external clients and internal servers.

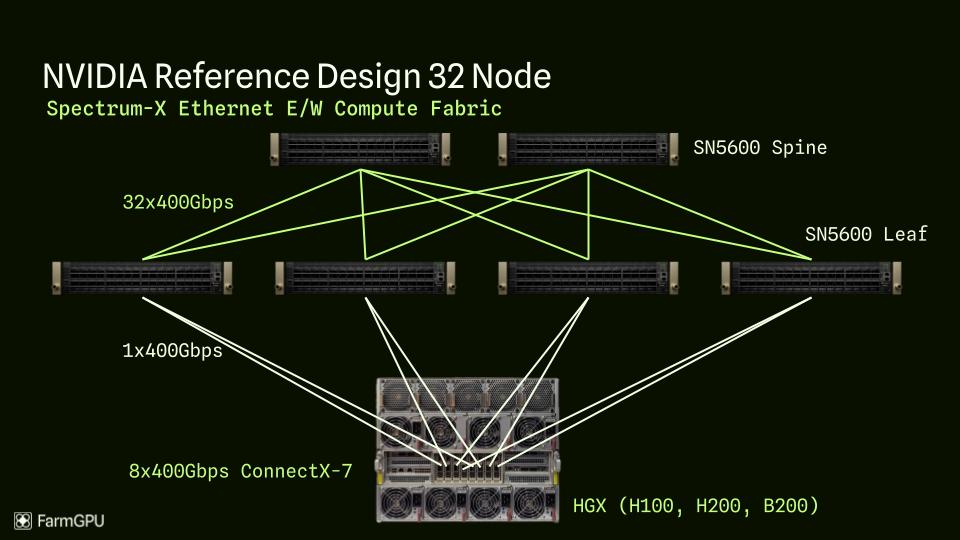

Figure: East/West (EW) network traffic in a data center, representing traffic between servers or racks within the data center, crucial for distributed AI workloads.
System-Level Optimization
AI data centers foster a much tighter coupling between accelerators, memory, and interconnect compared to traditional, modular server designs.
- Traditional servers allow flexible mixing of CPUs, DRAM, NICs, and storage.
- AI servers require balanced throughput across the entire data path (HBM → accelerator → interconnect).
- Bottlenecks in memory or networking can leave expensive compute units underutilized.
- System-level co-design is emphasized (e.g., NVIDIA DGX, Google TPU pods, AWS Trainium servers).
"AI server design increasingly emphasizes system-level optimization and co-design, contrasting sharply with the component-level modularity of traditional servers."
Economic Impact of Networking Choices
- Shift from general-purpose CPUs to specialized accelerators reshapes the data center value chain.
- In high-end AI servers, accelerators dominate the cost structure; DRAM is a much smaller fraction.
- Suppliers of HBM and high-speed interconnects gain importance; traditional CPU/DRAM vendors see relative decline.
- Networking technology choice (InfiniBand vs. RoCE) impacts both performance and economics.
The ongoing competition between InfiniBand and high-speed Ethernet (RoCE) is driving innovation and providing customers with more choices for large-scale AI deployments.
"Ethernet's ubiquity and cost base make it attractive for hyperscalers, while InfiniBand's low-latency, lossless design remains proven for tightly coupled AI workloads."
Key Takeaways
- AI data centers require specialized, high-bandwidth, low-latency networking fabrics.
- System-level co-design is critical for maximizing accelerator utilization.
- The choice between InfiniBand and RoCE is a major architectural and economic decision.
- Networking innovation is accelerating as AI workloads scale up.
